| WH-L1 Specifications | |
| Name | Wireless 50 Zones TEL Home Alarm System with LED Display |
| Model | WH-L1 |
| Backup Battery | For continue working 24 hours when power cut/off |
| Battery | Built-in 4.2V Lithium battery |
| Display | LED Display |
| Input voltage | DC12V |
| Standby current | <35mA |
| Alarm current | <450 mA |
| Alarm Sound | 110dB |
| Wireless frequency | 433Mhz |
| Support wireless sensors | EV1527/300K 2262/1.5-4.7M |
| Wireless distance | 100m open |
| Support Sensors Q'ty | 8pcs remote control + 50pcs detectors |
| Work Temperature | Temp: –10°C to 40°C |
| Color Box Dimension | 21*15*9.5cm |
| Standard Kit Weight | 0.8kg |
| WH-L1 Features & Functions | |
| Working Ways | PSTN Telephone Line |
| Defense Zones | 50 Wireless Zones |
| Alarm call and sms telephone No. | 6 groups of call phone number |
| Remote control the system | Arm |
| Disarm | |
| Monitor | |
| Start the siren and stop the siren | |
| Basic Functions | LED Display Arm/Disarm/Stay arm/Alarm/Setting |
| English voice operation instruction | |
| Password protection function | |
| 10s personal message record | |
| Automatic detection for the Doors/Windows closed or not | |
| Sensor low battery checking function | |
| Delay alarm setting | |
| Delay arm setting | |
| Telephone line anti-cut function | |
| Stay intelligent arm | |
| Reset factory setting | |

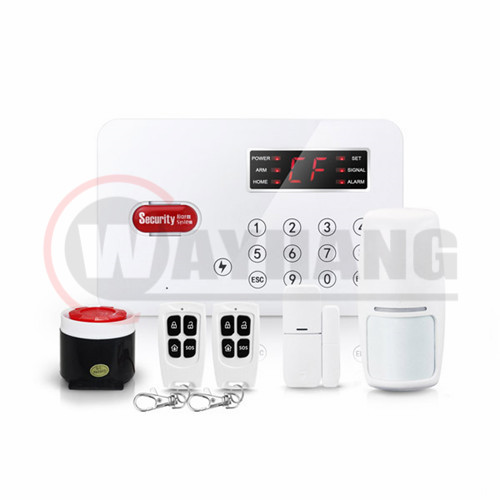

| WH-L1 Standard Package List | |
| Home Alarm Host(Built-in battery) | x1 |
| PIR Sensor(Battery & Bracket Included) | x1 |
| Door Sensor(Battery Included) | x1 |
| Remote Controller(Battery Included) | x2 |
| Siren | x1 |
| Power Adapter | x1 |
| User Manual | x1 |
| Telphone Line Cable | x1 |
