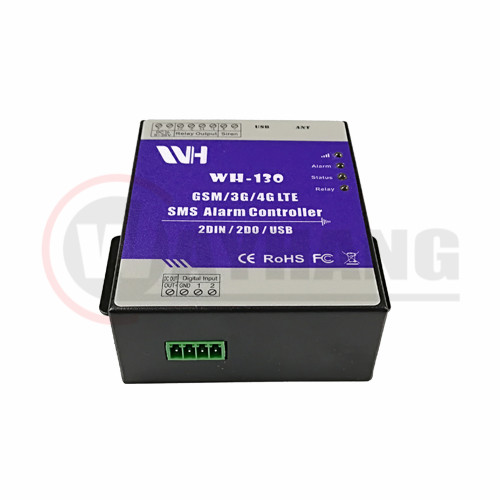

WH-130 GSM/3G/4G SMS Industrial Alarm Automation Controller Alarm Controller

  • Model: WH-130
  • GSM Frequency: 850/900/1800/1900 MHz
  • 3G: UMTS/HSDPA
  • 4G: LTE
  • Description: Digital input 3G 4G GSM alarm module with 2 output relay for home automation and M2M, USB programmable, 2G 3G 4G gsm sms alarm module Automatic controller are special for remote switch on/off machine,
  • Inquiry

Digital input 3G 4G GSM alarm module with 2 output relay for home automation and M2M, USB programmable, 2G 3G 4G gsm sms alarm module Automatic controller are special for remote switch on/off machine, equipments, and also it supports digital inputs for different detectors like water level detectors, PIR motion detectors and so on.



One of the advantages of them is when the inputs recovery can alert by SMS, and with one interlock Relay output, one SMS Command switch on/off relay output.



When alarm occurrence, will send definition SMS text and dial the user mobile phones.

Spercifications:

1.     GSM Frequency: 850/900/1800/1900Mhz;3G UMTS/HSDPA/4G Modules are optional;4G LTE;

2.     1 Independent Output Relay (240VAC3A) can be switched ON/OFF by sending a SMS text;

3.     1 Alarm-Link Output Relay (240VAC3A) can be switch on 0-120minutes if controller unit triggered;

4.      2/4/8 Alarm logic digital inputs, NC or NO and EOL is optional;

5.     3 SMS Alert numbers and 5 Alarm dial Telephone numbers can accept to the alarm message;

6.     Supports armed, disarmed, inquiry status, switch on/off Output Relay by SMS Commands;

7.     Password protected, prevents unauthorized user;

8.     Can be set up and programmed from PC Configurator by USB cable;

9.   Time stamped alarm messages.

10.   Backup rechargeable battery inside, can work for 24hours when AC Power goes off.

11.   Can be operated from anywhere, no distance limit;

12.   Based on GSM Network, applied to many applications.

13.   Wall mount or 35mm standard DIN rail Design, Installation Convenient!(Not including in the Package )



 Applications:

  1. Security Alarm System applications;
  2. Supervision and monitoring alarm systems;
  3. Automatic monitoring system;
  4. Vending Machines security protection;
  5. Buildings and Real Estate;
  6. Weather Stations;
  7. River Monitoring and Flood Control;
  8. Oil and gas pipelines;
  9. Corrosion protection
  10. Temperatures, water leakage applications;
  11. Wellheads, boat, vehicle;
  12. Energy saving, street lights control system;
  13. Valve controls;
  14. Transformer stations;
  15. Unmanned machine rooms;
  16. Control room application;
  17. Automation System, M2M;
  18. GSM Access Control System, Gate Opener, etc.
